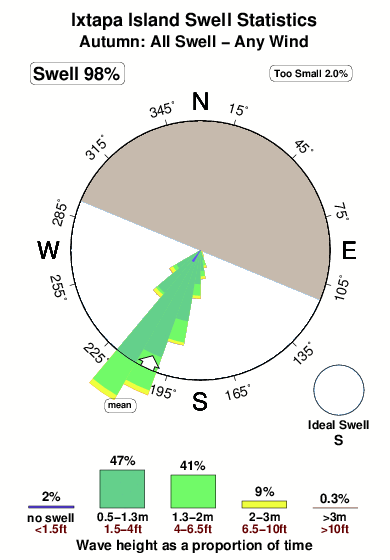

The graph shows the range of swells directed at Ixtapa Island through a typical northern hemisphere autumn and is based upon 5144 NWW3 model predictions since 2006 (values every 3 hours). The wave model does not forecast surf and wind right at the coast so we have chosen the best grid node based on what we know about Ixtapa Island. In this particular case the best grid node is 22 km away (14 miles).

The rose diagram shows the distribution of swell sizes and swell direction, while the graph at the bottom shows the same thing but lacks direction information. Five colours show increasing wave sizes. The smallest swells, less than 0.5m (1.5 feet), high are coloured blue. These were forecast only 2% of the time. Green and yellow represent increasing swell sizes and red illustrates biggest swells greater than >3m (>10ft). In each graph, the area of any colour is proportional to how frequently that size swell occurs.

The diagram suggests that the dominant swell direction, shown by the longest spokes, was SSW, whereas the the prevailing wind blows from the N. Because the wave model grid is out to sea, sometimes a strong offshore wind blows largest waves away from Ixtapa Island and offshore. We combine these with the no surf category of the bar chart. To avoid confusion we don't show these in the rose graph. Because wind determines whether or not waves are clean enough to surf at Ixtapa Island, you can select a similar diagram that shows only the swells that were forecast to coincide with glassy or offshore wind conditions. Over an average northern hemisphere autumn, swells large enough to cause surfable waves at Ixtapa Island run for about 98% of the time.

IMPORTANT: Beta version feature! Swell heights are open water values from NWW3. There is no attempt to model near-shore effects. Coastal wave heights will generally be less, especially if the break does not have unobstructed exposure to the open ocean.
